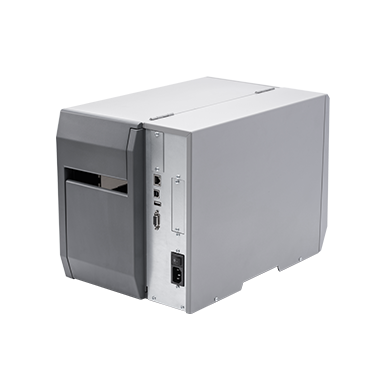

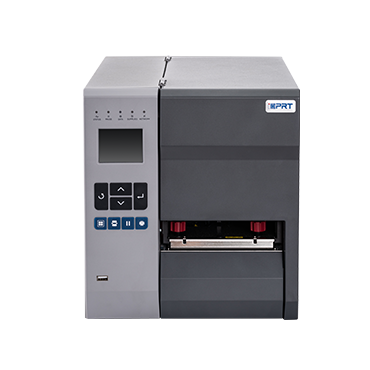

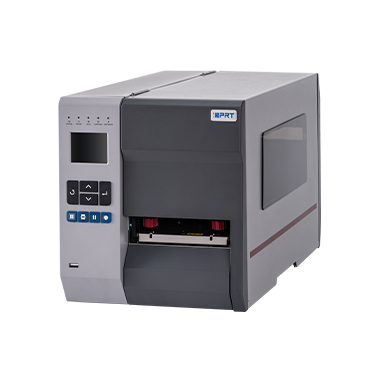

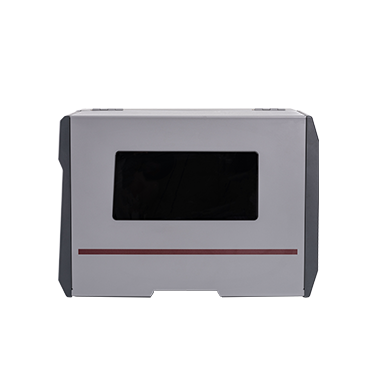

Industrial Barcode Label Printer
● High-speed printing,speed up to 10 ips
● Can peel off 5 mm high small labels
● Independent transmission of peeling and rewinding,easy to install
● Support EAP protocol,WiFi 5/WiFi 6 module expansion
● Support GPIO expansion
● 2.4\"LCD screen, all-metal structure
iQ4 Series: The Cost-Effective and Light Industrial Barcode Printer
With its clever industrial design, the iQ4 industrial barcode printer packs versatile, modular functionality into a compact form factor, delivering an exceptional user experience in a wide range of applications.
Intuitive Setup & User-Friendly Operation
The 2.4-inch color display provides an intuitive interface for effortless parameter adjustments and timely operational alerts, streamlining the entire user experience.
High-Precision Peeling for Miniature Labels
An advanced peeling system enables the precise separation of labels as small as 5mm in height, making it perfectly suited for printing and applying small labels in precision manufacturing.
Comprehensive Connectivity
The iQ4 series industrial barcode label printer supports GPIO (General Purpose Input/Output) via a 15-pin interface for automated labeling and language emulation. It also features comprehensive Wi-Fi (802.11 a/b/g/n/ac/ax) support, ensuring seamless and flexible network integration.
Remote Printer Management
iDPRT's Here Link solution provides enterprise-level remote printer management based on standard network and communication protocols, helping to reduce maintenance costs and prevent downtime for mission-critical equipment.
| Parameter | iQ4 |
| Resolution | 203 dpi, 300 dpi |
| Printing method | Direct Thermal and Transfer Thermal |
| Max. print speed | 10 ips @203 dpi, 8 ips @300 dpi |
| Max. print width | 4.1"(104 mm) @203 dpi, 4.17"(106 mm) @300 dpi |
| Max. print length | 90"(2,286 mm) @203 dpi, 60"(1,524 mm) @300 dpi |
| Physical dimension (W x H x D) | 10.16"(258 mm) x 11.30"(287 mm) x 15.98"(406 mm) |
| Weight | 28 lbs (12.5 kg) |
| Processor | 32-bit RISC CPU |
| Memory | 256 MB Flash / 256 MB RAM |
| Interface | Standard: Serial RS232, USB-B, USB Host, Bluetooth 5.0, Ethernet 10/100Base T; Optional: Wi-Fi 802.11 a/b/g/n/ac/ax |
| WiFi security encryption | WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) Enterprise (AES CCMP) |
| WiFi security authentication | EAP-TLS, EAP-PEAP |
| Power | Auto Range 100–240 VAC (48–62 Hz) |
| User interface | 1 power switch, 8 operation buttons (menu, feed, pause, up, down, back, enter, calibration), 5 LEDs (3 colors), 2.4" color TFT display |
| Sensors | Gap transmissive sensor, Black mark reflective sensor (position adjustable), Head open sensor, Ribbon end sensor |
| Internal fonts | 8 resident expandable ZPL II bitmap fonts Simplified Chinese, Traditional Chinese Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0 |
| Graphic formats | PCX, BMP |
| Barcode | 1D: Code 11, Interleaved 2 of 5, Code 39, Code 93, Planet, EAN-8/13, UPC-A/E, Industrial/Standard 2 of 5, Codabar, LOGMARS, Plessey, Code 128, GS1 Databar; 2D: Aztec, PDF417, MicroPDF-417, MaxiCode, Data Matrix, QR Code, TLC39 |
| Font and barcode rotation | 0°, 90°, 180°, 270° |
| Printer Language | ZPL-II, TSPL, DPL, EPL2 |
| Media type | Continuous, die-cut, black mark, fan-fold, notch |
| Media handling | Standard: Continuous, Tear-Off; Options: Peel-Off, Cut, and Rewind |
| Media width | Min 0.79"(20 mm) / Max 4.7"(120 mm) |
| Media thickness | 0.003"(0.08 mm) – 0.010"(0.250 mm) |
| Media core diameter | 1.5"(38.1 mm), 3.0"(76.2 mm) |
| Media max. roll diameter | 8.0"(200 mm) |
| Media length | Min: Tear-Off 0.31"(8 mm), Min: Peel-Off 0.20"(5 mm), Cutter 1.0"(25.4 mm); Max: 90"(2,286 mm) @203dpi, 60"(1,524 mm) @300dpi |
| Ribbon type | Wax, Wax/Resin, Resin |
| Ribbon length | 1476.4 ft (450 m) |
| Ribbon core diameter | 1.0"(25.4 mm) |
| Ribbon width | Min 1.18"(30 mm) / Max 4.33"(110 mm) |
| Environment condition | Operating Temperature: 41° to 122°F (5° to 50°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing Storage Temperature: -40° to 140° F (-40° to 60° C) / Storage Humidity: Non-Condensing |
| Safety Certification | CCC, FCC, CE,Energy Star |
| Environmental concern | RoHS, WEEE |
| Options | Wi-Fi 802.11 a/b/g/n/ac/ax, Rewind, Peel, Guillotine cutter, Rotary cutter, GPIO |
