The new master chip and independent image decoding technology make reading more efficient
Intelligent white auxiliary light and soft green aiming indicator light bring comfortable and convenient scanning experience
Support vibration prompt, easy to use in noisy or mute environment
Highly integrated structural design, 1.8m drop-proof, solid and durable
HN-3508SR | HN-7208HD | |
Scanning Parameter | ||
Image Sensor | CMOS | CMOS |
Pixel | 640*480 | 1080*1024 |
Illumination | White LED | White LED |

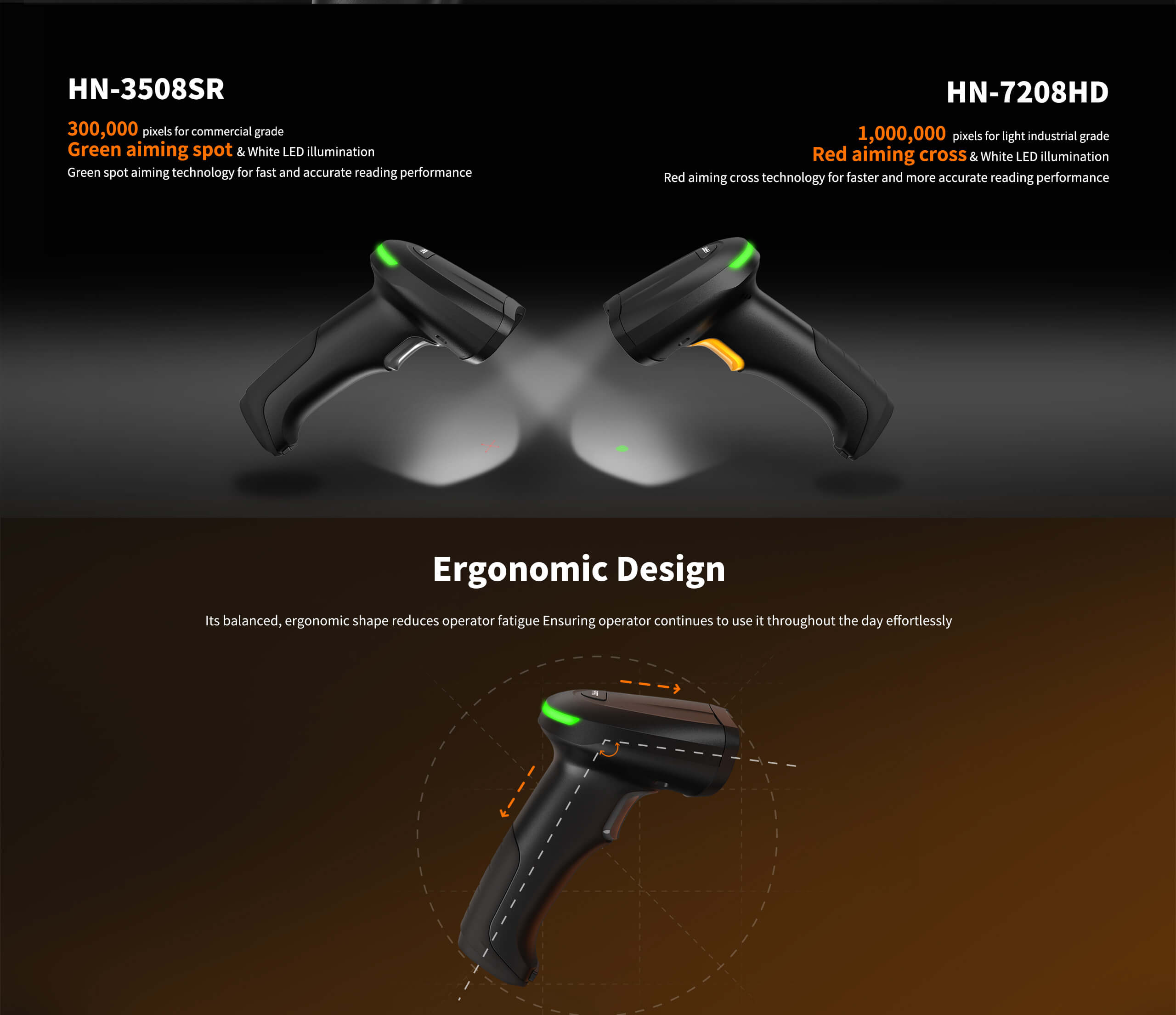

Focus | Green LED | Laser cross mark |
Symbologies | 2D: PDF417, QR Code, Data Matrix, , Maxicode etc. | 2D: PDF417, QR Code, Data Matrix, , Maxicode etc. |
1D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN, UPC-E, UPCA, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of5, lndustriaI 25, Standard 25, Code39, Codabar, Code 93, Code11, Plessey, MSI-Plessey, RSS-14. RSS-Limited. RSS-Expand etc. | 1D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN, UPC-E,UPCA,Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of5,lndustriaI 25, Standard 25, Code39, Codabar,Code 93, Code11, Plessey, MSI-Plessey, RSS-14. RSS-Limited. RSS-Expand etc. | |
Resolution | ≥3mil | ≥3mil |
Typical DOF | 13mil EAN:30mm-300mm;5mil Code39:20mm-170mm;20mil QR:20mm-200mm | 3mil Code 39: 25mm-120mm;13mil EAN-13: 20mm-220mm;5mil PDF417: 20mm-120mm |
15mil DM:15mm-120mm;6.7mil PDF417:25mm-150mm | 10mil DM:20mm-180mm;20mil QR:10mm-300mm | |
Scan Angle | pitch ±60°;tilt 360°;skew ±60° | pitch ±60°;tilt 360°;skew ±60° |
FOV | horizontal 40°;vertical 30° | horizontal 40°;vertical 30° |
Symbol Contrast | ≥20% | ≥20% |
Mechanical and Electrical Parameters | ||
Dimension(mm) | 91.5(D)*70.3(W)*162.5(H) | 91.5(D)*70.3(W)*162.5(H) |
Weight | 155g | 155g |
Interface | RJ-45 interface | RJ-45 interface |
Housing Material | PC+ABS | PC+ABS |
Notification | Buzzer, LED | Buzzer, LED |
System Interface | RS-232 serial port, USB keyboard, USB virtual serial port | RS-232 serial port, USB keyboard, USB virtual serial port |
Trigger Method | key reading, inductive reading and continuous reading | key reading, inductive reading and continuous reading |
Working Voltage | 5VDC±10% | 5VDC±10% |
Working Current | Standby current :40mA;working current:255mA | Standby current :40mA;working current:255mA |
Environment Parameter | ||
Working Temperature | -20~50°C | -20~50°C |
Storage Temperature | -40~70°C | -40~70°C |
Humidity | 5%~95% (non-condensing ) | 5%~95% (non-condensing ) |
Drop Specification | 1.8m | 1.8m |
IP rating | IP42 | IP42 |
Certificates | CE FCC RoHS | CE FCC RoHS |
