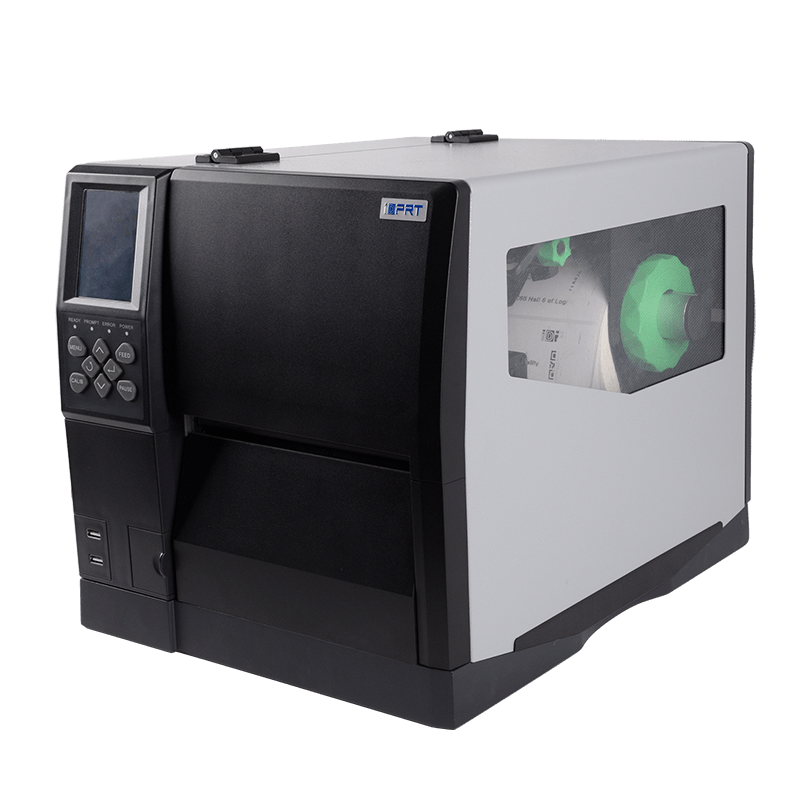

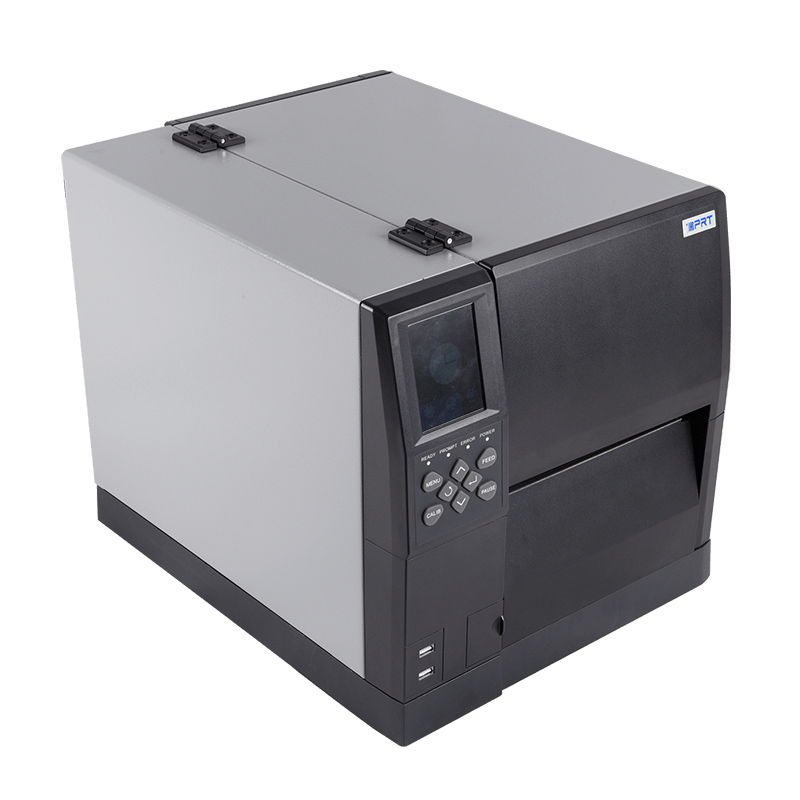

6-Inch Industrial Barcode Printer

● Accurate positioning of small tags;

● High speed printing of large labels;

● Easy operation of the touch screen;

● Diversification of accessories mix;

iX6E
iX6E
iX6E
iX6E
Details Page
Specifications
Accessories
Video Guide
Download

  Model

 iX6E

  Product Photos

  Memory Printing Method Thermal transfer
 Resolution /Max.   Printing Speed 203 dpi /6 ips
 Optional 300 dpi / 4ips
 Max.Printing   Length 3121mm(203 dpi)
 1387mm(300 dpi)
Max. Printing Width 168 mm
 Protocol  DPL, ZPL-II
  Media  Types



 PP/PVC/PET/BOPP Film Label, Synthetic



 Paper Label, Vinyl,Continuous Paper, Gap



 Label, Black mark Paper, Punched Hole



 Label, ECO Thermal Labels, Coated



 Semi-gloss Art Label, Textile ribbon


  Core Diameter


 3"(ID.); Max. 8"(OD.)


  Thickness



 80 μm ~ 254 μm


  Width

 50.8 mm ~ 175 mm
  Ribbon Type



 Wax, Wax/Resin, Resin


 Core Diameter 1-inch
 Width 58 mm ~ 172 mm
 Length



 450 m


  Fonts



 Resident Fonts




 Bitmap fonts: 8, 12, 16, 24, 32 and OCR




 A & B Bitmap fonts: 90°, 180°, 270°




 rotatable. 10 times maximum expandable



 in horizontal and vertical directions.TTF



 fonts: Monotype CG Triumvirate™ scalable



 true type font


 Downloaded Fonts



 Bitmap fonts: 90°, 180°, 270° rotatable,



 single characters 90°, 180°, 270° rotatable



 Asian fonts: 16x16, 24x24. Traditional



 Chinese, Simplified Chinese, Japanese,



 Korean TTF fonts: 90°, 180°, 270° rotatable


  Barcodes 1D

 Code 39, Code 93, EAN 8/13 (add on 2 & 5),

 UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5

 with Shipping Bearer Bars, Codabar, Code

 128 (subset A, B, C), EAN 128, RPS 128, UCC

 128, UCC/EAN-128 K-Mart, Random Weight,

 Post NET, ITF 14, China Postal Code, HIBC,

 MSI, Plessey, Telepen, FIM, GS1 DataBar,

 German Post Code, Planet 11 & 13 digit,

 Japanese Postnet, I 2 of 5 with human

 readable check digit, Standard 2 of 5,

 Industrial 2 of 5 , Logmars, Code 11,

 Code 49, Cadablock

 2D

 PDF417, Data matrix code, Maxi Code,

 QR code, Micro PDF417, Micro QR code,

 Aztec code

  Sensor

 Paper out detection, Ribbon out detection,

 Print head open detection, Print head

 temperature detection, Power Temp

 Detection, Motor Temp Detection

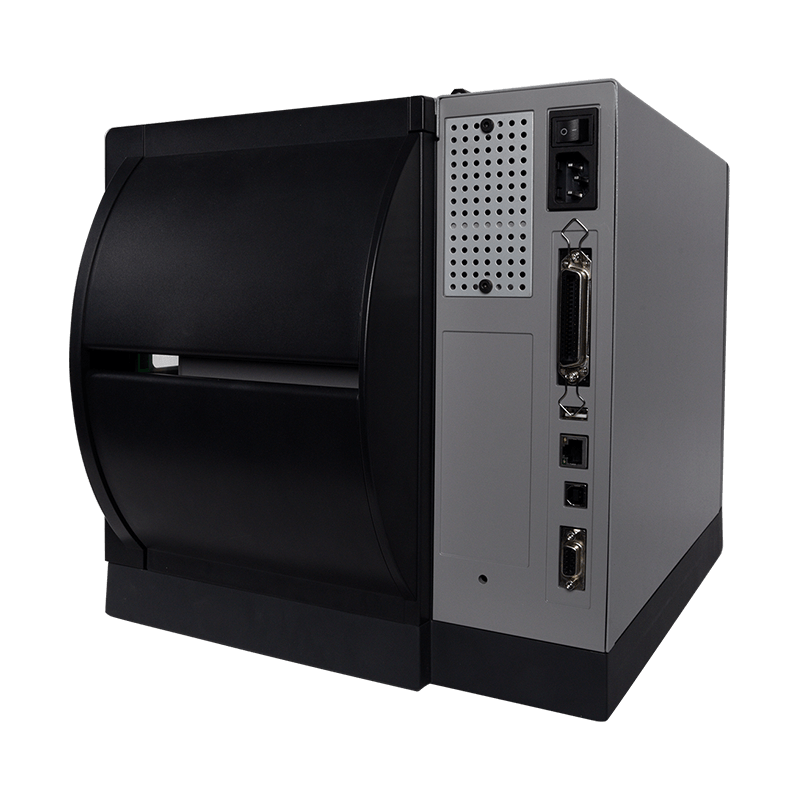

  Interfaces Standard

 USB Type B ×1, USB HOST ×3, RJ45 ×1,

 RS232(9-pin) ×1

 Optional

  36-pin Parallel Port, D-Sub(15-pin),

  Wi-Fi, RFID(UHF)

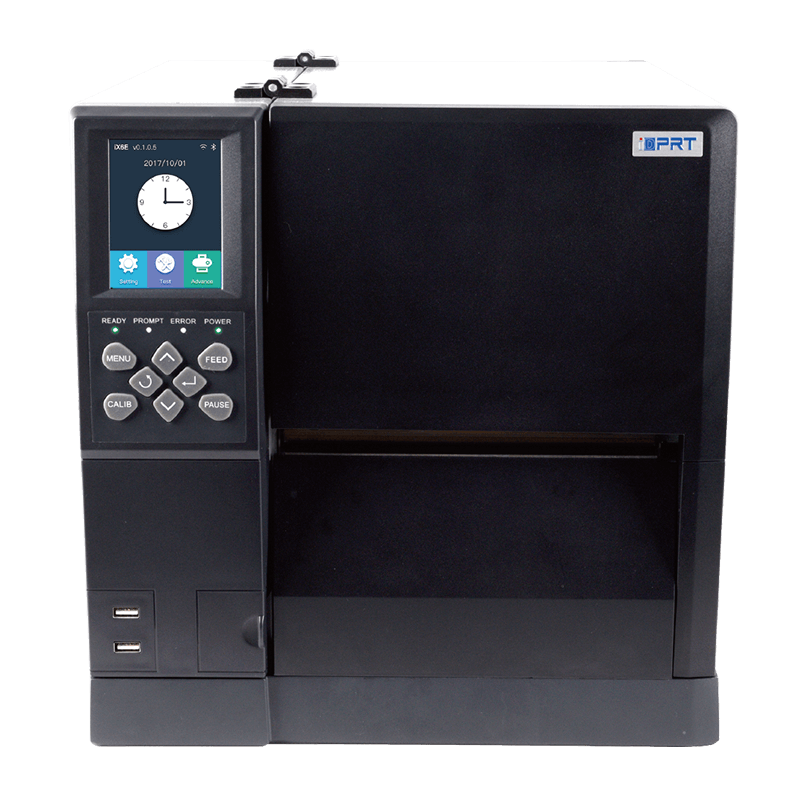

  Display

  3.5-inch Colour Display

  RTC Function  YES
  Memory RAM

  512MB

 Flash

 256 MB

  Electrical

 Input AC 100-240V, 50/60Hz
 Output DC 24V, 10.5A

  Environment

 Operation

 0 to 50℃@ humidity 25% to 85%

 non-condensing

 Storage

 -40 to 60℃@ humidity 10% to 90%

 non-condensing

  Software

 Driver Seagull Driver:Windows7,8,10

 iDPRT Driver:Windows XP, Vista, 7, 8, 10, Linux ,MacOS

Label Design

 Software

 Bartender 2016
 Options & Accessory

 Peeler Module , Cutter Module , External

 Label Roll Holder

 Dimension(L×W×H)460.4 × 322 × 330.5mm
 Weight(kg)14.5
 Agency ApprovalCE, FCC, CCC, BIS, CB, UL, RoHS, WEEE
Description Type OS Version Operation
Series Ethernet Connection and Setting Manual for iX6E Manual All System 2.11 MB iX6E Download
Windows(Desktop Type) for iX6E Bartender Windows 685.47MB iX6E Download
Windows Bartender for iX6E Bartender Windows 175.03 MB iX6E Download
iOS SDK ZPL for iX6E SDK iOS 10.97 MB iX6E Download
Windows SDK ZPL for iX6E SDK Windows 2.29 MB iX6E Download
Android SDK ZPL for iX6E SDK Android 1.66 MB iX6E Download
WinCE SDK ZPL for iX6E SDK WinCE 1.87 MB iX6E Download
MacOS Driver for iX6E Driver MacOS 451.00KB iX6E Download
Linux Driver for iX6E Driver Linux 526.22KB iX6E Download
MacOS MacOS for iX6E Driver MacOS 356.49KB iX6E Download
Linux Driver for iX6E Driver Linux 417.26KB iX6E Download
Windows Seagull Driver for iX6E Driver Windows 78.99MB iX6E Download
Windows Driver for iX6E Driver Windows 1.12MB iX6E Download
Windows Driver for iX6E(By iDPRT) Driver Windows 1.55 MB iX6E Download
Windows Driver for iX6E(By Seagull) Driver Windows 37.5 MB iX6E Download
All System Windows (Desktop Type) for iX6E Utility All System 4.14MB iX6E Download
Windows utility for for iX6E Utility All System 2.36 MB iX6E Download
Catalog for iX6E Catalog All System 2.35 MB iX6E Download
