Handheld Barcode Scanner
● Long scanning depth of field, suitable for various reading distances;
● Humanized power indicator, clear display of real-time power;
● With megapixel，easy to read blur, stain and high-density low-contrast barcode;
● Highly integrated structural design, 1.5m drop-proof, solid and durable;
● Wireless 100m Bluetooth transmission can realize many to one configuration combined with the base;
Retail
Warehousing
Logistics

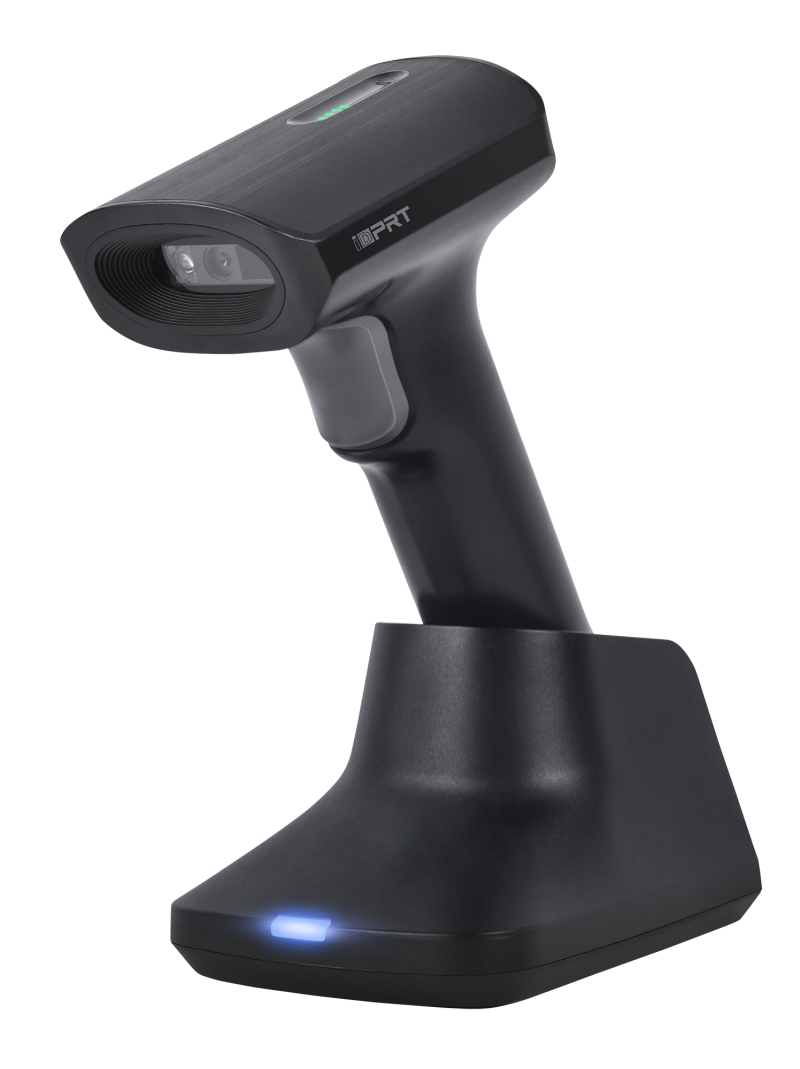

The HN-62 series 2D handheld barcode scanner adopts self-developed core decoding technology to quickly read barcodes that are curved, damaged, wrinkled, or blurry. It is durable with an IP42 rating and can withstand drops up to 1.8 meters. The wireless version includes a 2600mAh battery and a charging base with integrated Bluetooth.
Megapixel barcode scanner
Efficiently reads curved, wrinkled, blurred, damaged, and low-contrast 1D/2D barcodes
1.8-meter drop resistance
Sturdy and durable integrated design with 1.8-meter drop protection
Large battery and power display
Wireless version features a 2600mAh battery with a power display for real-time monitoring
Bluetooth 5.0
Ensures stable communication over 100 meters with strong anti-interference capabilities
Full range of optional accessories
Serial cable, adapter, communication charging bases, and Bluetooth dongles
| Symbologies | 1D/2D | |
|---|---|---|
| Image Sensor | CMOS | |
| Pixel | 1280*1080【GS】 | |
| Resolution | ≥3mil | |
| FOV | Horizontal: 40 °, Vertical: 30 ° | |
| DOF | 5mil Code39：50mm–240mm 13mil EAN： 40mm–550mm6.7mil PDF417： 25mm–150mm 10mil DM： 45mm–200mm20mil QR： 35mm–350mm | |
| Interface | USB/Bluetooth | |
| Radio Technology | Bluetooth 5.0 | |
| Communication Distance | 100m (in open space) | |
| Memory Capacity | 4MB (capable of storing the data of over 100,000 EAN-13 barcodes) | |
| Battery | 2600mAh lithium-ion battery | |
| Expected Battery Life | ≥12 hours(scan once per 1 seconds) | |
| Expected Charge Time | ≤6 hours (with power adapter) | |
| Charge Interface | USB Type-C/Charging Cradle | |
| ESD | ?15 kV Air Discharge， ±8 kV Direct Discharge | |
| IP Rating | IP42 | |
| Drop | 1.5m | |
| Certifications | CE/FCC/ROSH | |
| Dimension(mm) | ||
| Weight |
