● The adoption of the latest master chip and imaging scanning technology has greatly improved the decoding speed of bar codes;
● Smart red light replacement and sighting AIDS for a comfortable and convenient scanning experience;
● The hardware adopts a highly integrated design scheme that guarantees the durability of the product in all directions;
● Plug-and-play interface design, which can be quickly used in conjunction with other mainframe equipment;
● ergonomic shell design with better grip;

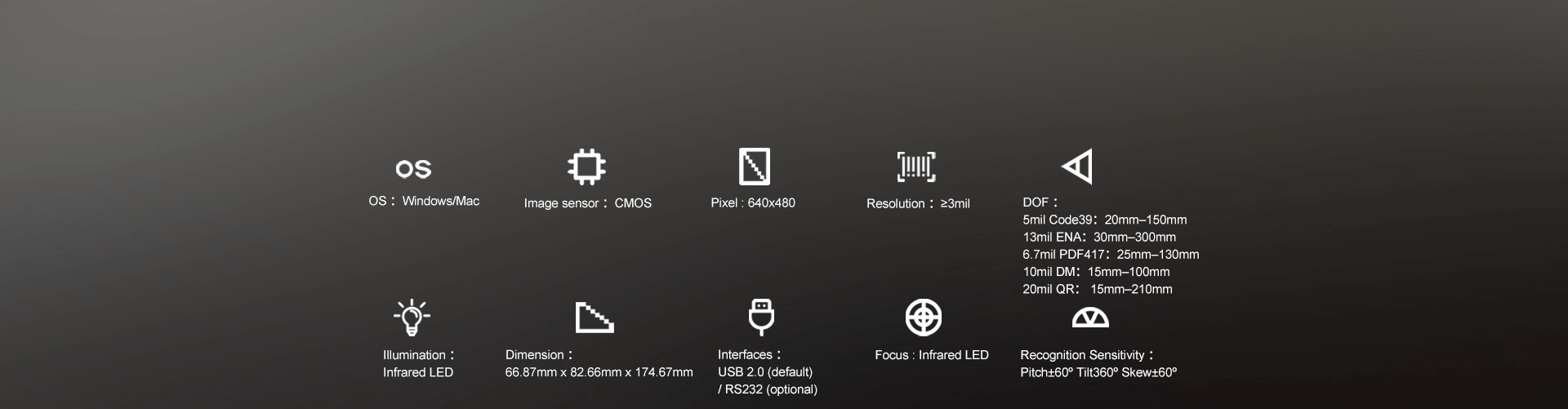

Model | HN-3208SR |
Product Photos |
|
Image Sensor | CMOS |
Pixel | 640x480 |
Illumination | Infrared LED |
Focus | Infrared LED |
Symbologies | 2D: PDF417,QR Code,Data Matrix,HanXin,
Maxicode,Postal Codes etc 1D: Code128, UCC/EAN-128,AIM128,EAN-8,EAN-13, ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of, 5,ITF-6,25,Code39,Codabar,Code 93,Code, 11,Plessey,ITF-4,Matrix 2 of5,Industrial,25, Standard MSI-Plessey,RSS-14、RSS-,Limited、 RSS-Expand etc. |
Resolution | ≥ 3mil |
Typical DOF | 5mil Code39:20mm–150mm 13mil EAN:30mm–300mm6.7mil PDF417:
25mm–130mm 10mil DM：15mm–100mm 20mil QR： 15mm–210mm |
Recognition Sensitivity | Pitch±60º Tilt360º Skew±60º |
FOV | Horizontal: 32 ° , vertical: 25 ° |
Symbol Contrast | ≥ 20% |
Dimension(mm) | 83（D）*67（W）*175（H） |
Weight | 128g |
Scanner Interface | RJ-45 crystal head |
Housing Materials | PC+TPU |
Notification | Buzzer, LED Indicator |
Interfaces | RS-232 Serial Port, USB, USB Virtual Serial Port |
Trigger Method | Manual keystroke, induction recognition,
continuous recognition |
Operating Voltage | 5VDC±10% |
Operating Current | Standby：100mA；Work：230mA |
Power | Standby： 0.5W； Work：1.15W |
Operating Temperature | -20 ℃ ~+50℃ |
Storage Temperature | -40℃ ~+70℃ |
Relative Humidity | 5%~95%（No Condensation） |
ESD | ±15 kV Air Discharge,±8 kV Direct Discharge |

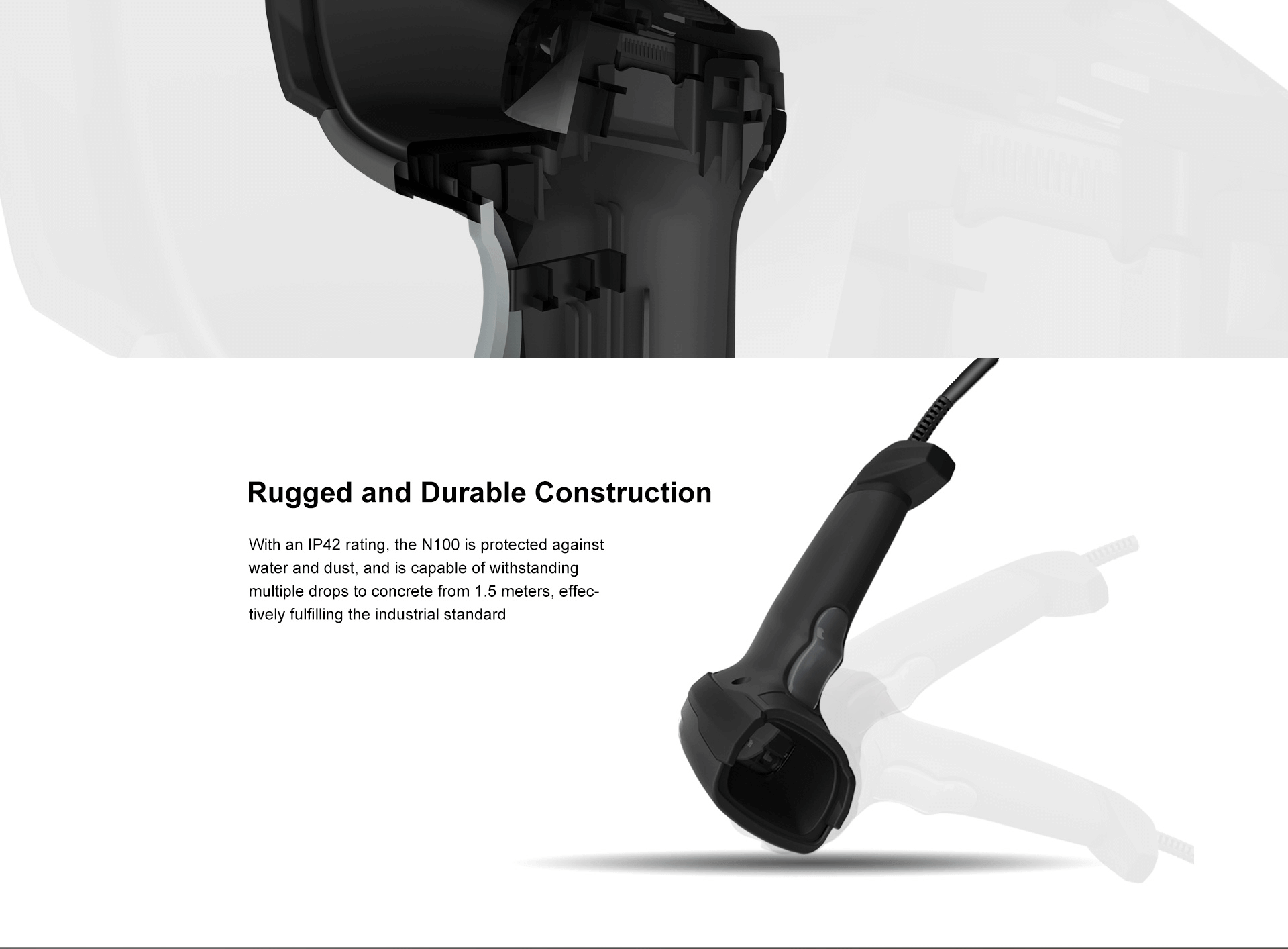

Anti-shock Ability | 1.5 m |
Protection Grade | IP42 |
Certification | CE, FCC, RoHS |
Cable | USB: use to connect the scanner to
the information receiving host
RS-232: use to connect the scanner
to the nformation receiving host |
AC Adapter | 5V, coordinate with RS-232
cable to power the scanner |
Test Condition | Environment temperature: 23ºC Environment
illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment
illumination |
